Electric Actuator Ball Valve

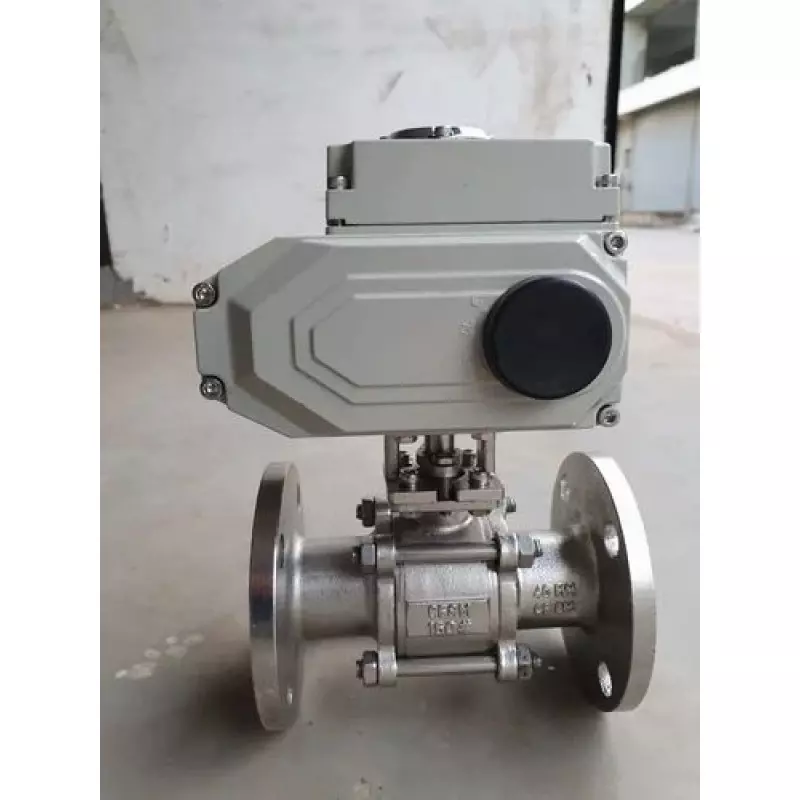

In an automated pipeline, every valve movement can be part of a larger operating sequence. The Electric Actuator Ball Valve from Shiv Valves Industries is designed to bring automatic on/off control to industrial fluid and gas lines, combining a 2-inch ball valve with an electric actuator. With an SS304 body, PTFE seat, Class 150 pressure rating and flanged connection, this configuration is suited to compatible medium-pressure applications in Ahmedabad, Gujarat.

Built Around Fast Quarter-Turn Isolation

The valve uses a spherical ball with a central passage to control the process stream. When the passage aligns with the pipeline, the valve permits flow; rotating the ball by approximately 90 degrees moves it into the closed position. The electric actuator supplies this rotational movement, allowing the valve to be operated automatically rather than by a manual handle.

This particular configuration is an electric ON/OFF type, making it appropriate for applications where the required operating states are clearly defined as open or closed. Electrical operation can also support integration with suitable automation and control systems.

Specification Snapshot

Material Selection for Process Compatibility

• SS304 body: Provides the specified stainless steel construction for the valve assembly.
• PTFE seat: Provides the seating arrangement for suitable fluid and gas services.
• Flanged connection: Provides a conventional pipeline connection for compatible installations.
• Electric actuator: Converts electrical energy into the rotational movement required to operate the ball.
• Single-phase operation: The specified configuration is designed around single-phase electrical service.

Designed for Automated Process Sequences

Electrical actuation becomes particularly useful where valves need to operate according to predetermined process conditions. A control system can command the actuator to move the valve, reducing the need for personnel to access individual pipeline valves. Depending on the overall control architecture, electrically operated valves can be incorporated into automated plant sequences and remote operating arrangements.

The stated media range includes water, chilled water, hot water, air, oil, gas, steam and chemicals. Actual suitability should always be confirmed against the specific chemical composition, pressure, temperature and process conditions before selection.

Applications Across Industrial Utility Lines

This 2-inch Class 150 configuration can be considered for compatible industrial and commercial systems requiring automatic isolation. Potential service areas include water circulation, chilled-water systems, hot-water lines, air services, oil handling, gas systems, steam applications and selected chemical processes.

With a minimum order quantity of 1 piece, Shiv Valves Industries supplies the Electric Actuator Ball Valve from Ahmedabad, Gujarat. Share your required media, operating pressure, temperature, connection preference and electrical supply when enquiring so the valve configuration can be evaluated against your application requirements.
