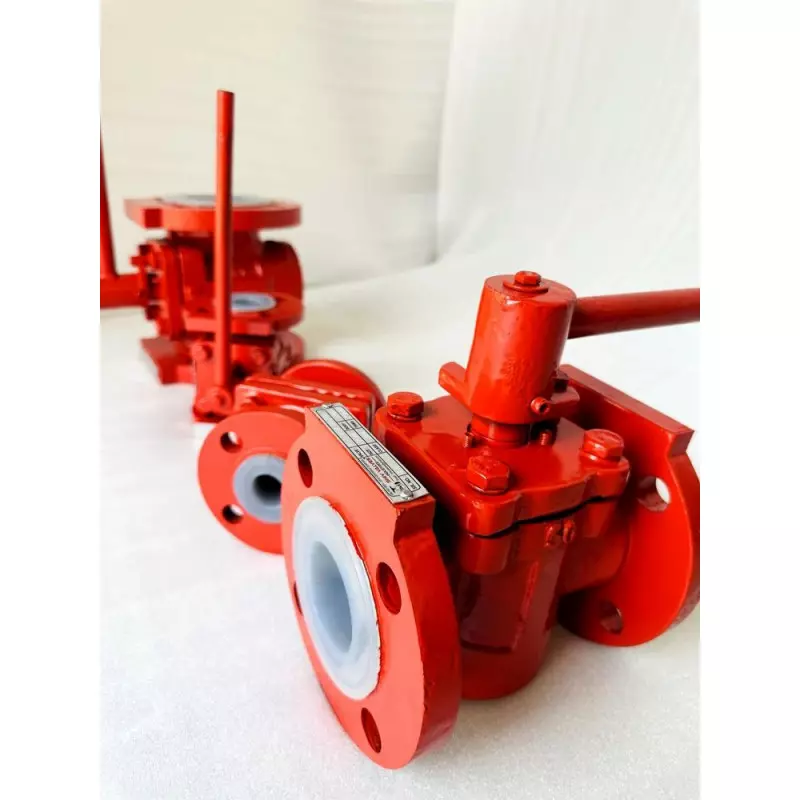

Lined Plug Valve
Lined Plug Valve Details
In chemical process piping, dependable isolation starts with keeping aggressive media away from the underlying valve construction. Our Lined Plug Valve is designed around this requirement, featuring a 3 mm FEP lining inside a ductile iron body. The fluoropolymer-lined construction provides a protective process-contact surface for demanding chemical services, while the manual lever arrangement keeps operation simple and direct. Manufactured by Shiv Valves Industries in Ahmedabad, Gujarat, this 25 mm valve is suited to industrial applications where corrosion resistance and reliable shutoff are important.
FEP Lining for Corrosive Process Conditions
The defining element of this valve is its FEP lining. FEP offers useful chemical resistance and non-stick characteristics, making it suitable for handling specified aggressive media when application compatibility is confirmed. The 3 mm lining separates the process fluid from the ductile iron body, helping reduce direct chemical exposure and supporting longer-lasting valve service in suitable operating conditions.
The plug configuration is intended for straightforward isolation, with manual lever operation providing convenient control without pneumatic or electrical actuation. Its flanged end connection allows installation into compatible industrial piping arrangements, while the ANSI B16.5 specification provides a defined connection standard.
Technical Profile of the Lined Plug Valve
| Parameter | Specification |
|---|---|
| Valve Type | Lined Plug Valve |
| Size | 25 mm |
| Pressure Rating | 150 Class |
| End Connection | Flanged |
| Body Material | Ductile Iron |
| Lining Material | FEP |
| Lining Thickness | 3 mm |
| Operation | Manual Lever |
| Temperature Range | Up to 180 °C |
| Standard | ANSI B16.5 |
Construction Features That Support Reliable Isolation
- FEP process lining: Provides a corrosion-resistant fluoropolymer interface for compatible aggressive media.
- 3 mm lining thickness: Adds a substantial protective layer between the process fluid and ductile iron body.
- Ductile iron construction: Provides a mechanically robust valve body for industrial service.
- Manual lever control: Offers uncomplicated operation for isolation requirements.
- Flanged connection: Supports installation in compatible flanged piping systems.
- Temperature range: Specified for service up to 180 °C.
Application Range for Chemical Handling
This FEP lined plug valve is specified for media including HCL, H2SO4, solvent, HF, acids, chlorine and alkalis. Such services can present significant corrosion challenges for conventional metallic valve surfaces. The FEP-lined internal construction provides a protective barrier intended for chemically demanding applications, including process and chemical handling systems. Final selection should always consider the exact concentration, temperature, pressure and compatibility of the process medium.
Industrial Valve Manufacturing from Ahmedabad
Shiv Valves Industries, established in 2022, manufactures industrial valve solutions in Ahmedabad, Gujarat, with attention to product construction and quality requirements. This Lined Plug Valve is made in India and supplied for industrial process applications. The combination of FEP lining, ductile iron body, manual operation and flanged connection makes it a practical configuration for specified corrosive-fluid isolation duties.
For the 25 mm Lined Plug Valve, contact Shiv Valves Industries in Ahmedabad, Gujarat, with your required media, pressure, temperature and piping details for product availability, technical assistance and quotation.
