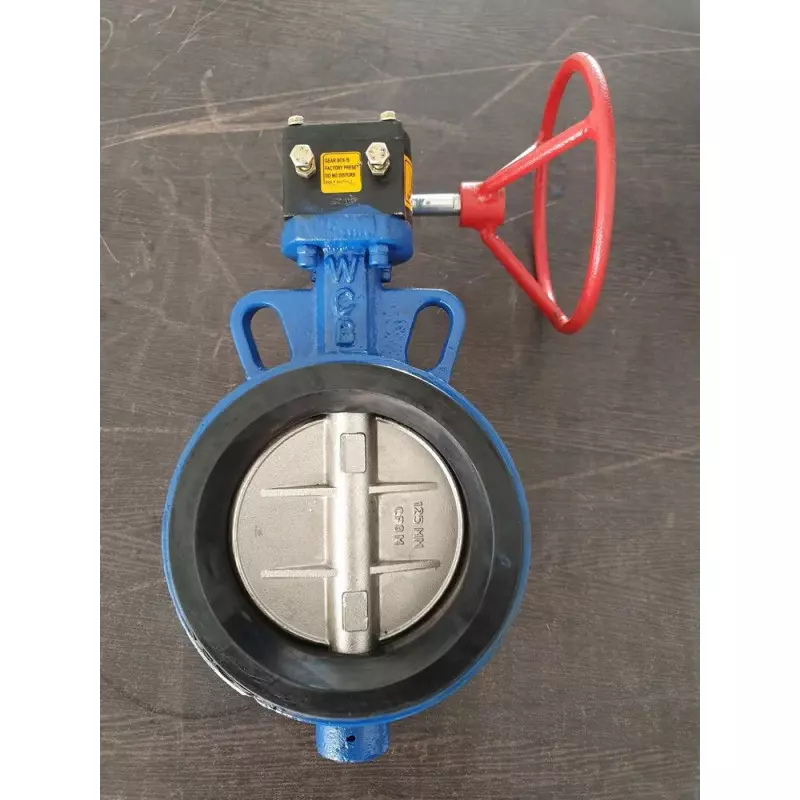

4 Inch Butterfly Valve
4 Inch Butterfly Valve Details
When pipeline space is limited, a compact valve with dependable operation becomes a practical choice. We manufacture and supply 4 Inch Butterfly Valve in Ahmedabad, Gujarat for industrial flow control applications. This model is supplied in a 100 mm size with a Cast Iron body, Stainless Steel CF8 disc, EPDM seat and SS 410 shaft. The wafer type construction and manual lever operation make it suitable for installations where simple operation and compact mounting are required.
The valve follows API 609 design standards and is manufactured with a PN 16 pressure rating. Its quarter-turn operating mechanism allows quick opening and closing without requiring multiple turns. We also offer 4 Inch Butterfly Valve in different body materials, operating options and sealing arrangements according to project requirements.
Compact Design for Industrial Pipelines
The wafer type body is designed to fit between standard pipe flanges, helping reduce installation space. The Cast Iron body provides structural strength, while the Stainless Steel CF8 disc rotates smoothly inside the valve body to regulate flow. An EPDM seat forms the sealing surface between the disc and valve body, and the SS 410 shaft supports reliable disc movement during operation.
| Component | Specification |
|---|---|
| Body Material | Cast Iron (CI) |
| Disc Material | Stainless Steel (CF8) |
| Seat Material | EPDM |
| Shaft Material | SS 410 |
| End Connection | Wafer Type |
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | 4 Inch Butterfly Valve |
| Size | 100 mm (4 Inch) |
| Body Material | Cast Iron (CI) |
| Operation | Lever Operated |
| End Connection | Wafer Type |
| Disc Material | Stainless Steel (CF8) |
| Pressure Rating | PN 16 |
| Seat / Seal Material | EPDM |
| Shaft Material | SS 410 |
| Design Standard | API 609 |
Quarter-Turn Operating System
The valve controls flow using a rotating butterfly disc. A single quarter turn of the lever changes the valve from fully open to fully closed. The disc can also remain at intermediate positions whenever controlled flow is required. This simple operating principle helps reduce operating time compared to valves that require several handle rotations.
Important Product Features
- 100 mm (4 inch) valve size
- Cast Iron body construction
- Stainless Steel CF8 disc
- EPDM seat for sealing
- SS 410 shaft
- Wafer type end connection
- Lever-operated manual control
- PN 16 pressure rating
- Designed according to API 609 standard
Application Scope
This 4 Inch Butterfly Valve is suitable for industrial pipeline systems where compact installation and manual flow control are required. Before selecting the valve, users should verify the actual media, pressure, temperature and pipeline conditions against the product specifications to achieve suitable performance.
We manufacture and supply 4 Inch Butterfly Valve in Ahmedabad, Gujarat for industrial requirements across India. Since 2022, we've been manufacturing butterfly valves in different sizes and configurations for process industries. If you're looking for a 100 mm valve or need another size from our butterfly valve range, send us your technical requirement. We'll provide suitable product details and a competitive quotation.
