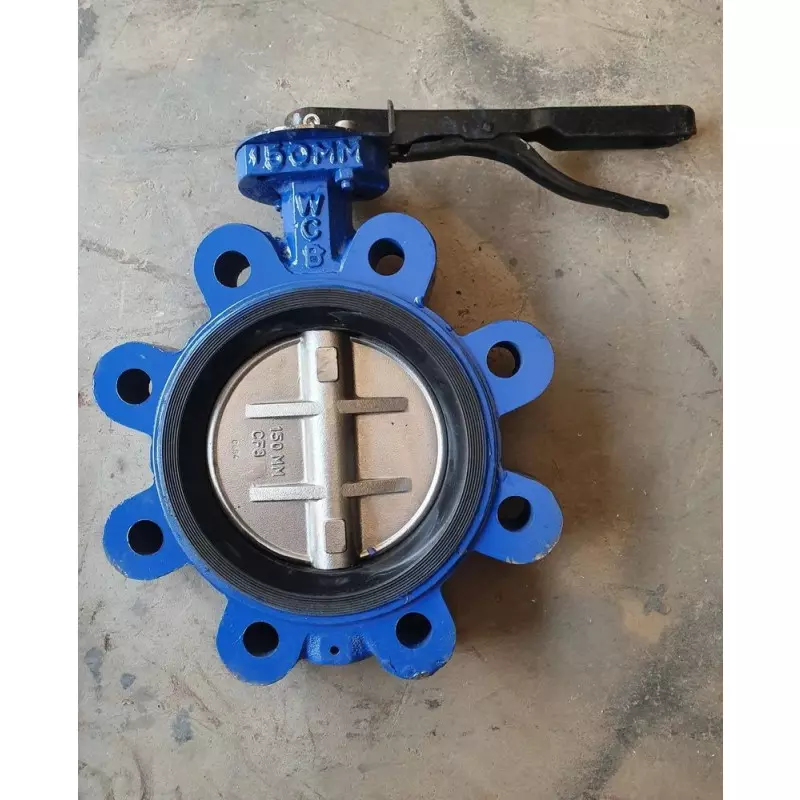

Lug Type Butterfly Valve

Large pipeline isolation calls for a valve arrangement that balances secure installation with straightforward operation. Our Lug Type Butterfly Valve is configured for industrial flow-control applications where a 6-inch valve, PN16 pressure rating, and direct lever operation are required. Manufactured in cast steel, this SVI make valve provides a practical solution for controlling and isolating flow in industrial piping systems across Ahmedabad, Gujarat.

Six-Inch Lug Configuration for Controlled Isolation

The lug type butterfly valve uses a quarter-turn disc mechanism to control the passage of media. Its lug-style construction is intended for secure positioning between pipeline flanges, while the manual lever provides direct operator control. The 6.0-inch valve size makes this configuration suitable for larger pipeline sections where dependable isolation is required without adopting a more complex operating arrangement.

With a PN16 pressure rating and low-temperature media specification, the valve is suited to applications where the operating conditions fall within the stated design parameters. Correct flange alignment, installation, and operating conditions are important for achieving reliable service performance.

Technical Details at a Glance

Built Around Simple, Direct Valve Operation

The manual operating arrangement eliminates the need for external actuation equipment where automated control is not required. A lever-operated quarter-turn mechanism allows the operator to move the valve between open and closed positions efficiently. This makes the configuration particularly useful for pipeline sections where valve access is available and local manual isolation is preferred.

• Cast steel construction for industrial valve service.
• 6-inch nominal valve size for larger pipeline applications.
• PN16 pressure rating for specified operating conditions.
• Manual lever operation for direct flow isolation.
• Lug-type mounting arrangement for pipeline installation.
• Low-temperature media specification.
• Compact butterfly valve operating principle for practical installation.

Where This Valve Fits Into Industrial Systems

This lug type butterfly valve can be considered for industrial utility and process pipelines where manual shut-off and isolation are required. Its larger 6-inch size makes it appropriate for systems handling substantial pipeline flow, while the lug configuration offers a dedicated mounting arrangement between flanges.

For customers seeking a lug type butterfly valve in Ahmedabad and Gujarat, Shiv Valves Industries provides this SVI make configuration according to the stated technical parameters. Established in 2022, the company focuses on meeting industrial valve requirements with attention to product specifications and quality standards.

For enquiries, share your required quantity, pipeline details, operating conditions, and installation requirements with Shiv Valves Industries to discuss the suitable 6-inch PN16 lug type butterfly valve configuration.
