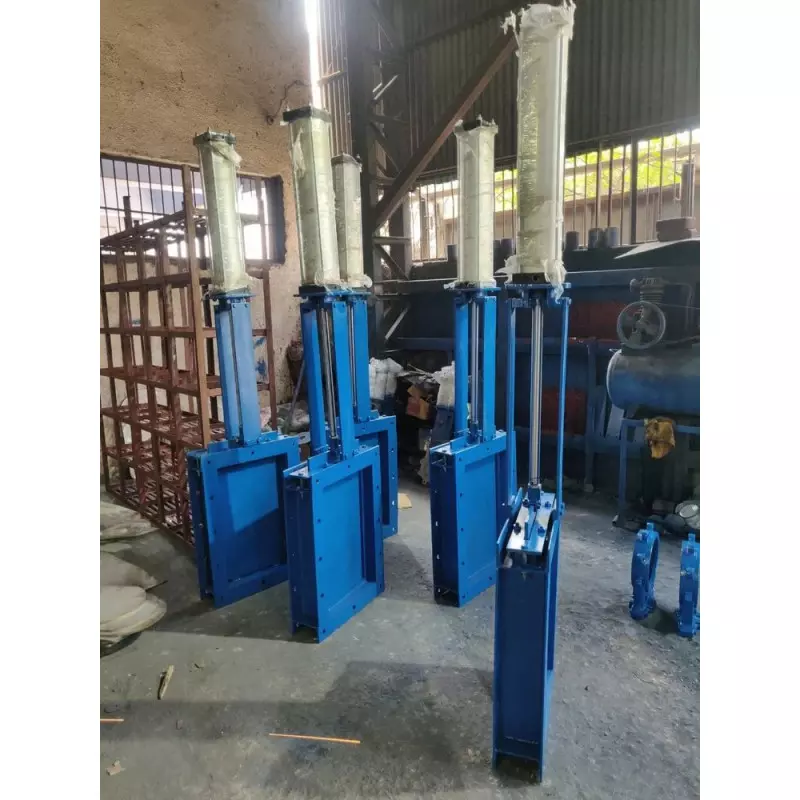

Slide Gate Valves

When a process line carries slurry, suspended solids or other challenging industrial media, dependable isolation becomes an important part of plant operation. SVI Make Slide Gate Valves are designed with a knife-edge gate arrangement to provide controlled opening and closing of the flow passage. With pneumatic operation, automatic functionality and sizes ranging from 50 mm to 1000 mm, this industrial valve range offers a practical solution for applications where remote or automated flow isolation is required.

Knife-Edge Design for Demanding Flow Conditions

The knife-edge gate is a key feature of this slide gate valve configuration. As the gate moves through the valve passage, its profile is intended to work effectively with slurry-type media and suspended material. The sliding action provides a direct method of opening or closing the line, while pneumatic actuation allows the valve to be operated without relying on manual intervention at the installation point.

Product Specifications

Built for Automated Industrial Flow Isolation

Pneumatic actuation makes this valve suitable for process installations where frequent operation, centralized control or automated sequencing is required. Compressed air drives the actuator to move the slide gate, allowing the valve to be incorporated into suitable automated process systems. This can be especially useful when valves are installed at locations where regular manual operation would be inconvenient.

Flexible Size Range for Process Lines

The available size range of 50 mm to 1000 mm provides flexibility when selecting a valve for different pipeline arrangements. The flanged end connection supports installation into compatible industrial piping systems, while the mild-steel body offers a practical construction for specified industrial service. The square body configuration complements the overall slide-gate construction.

Important Features for Slurry Service

• Knife-edge gate design for suitable slurry-handling applications.
• Pneumatic operation for automated opening and closing.
• Automatic configuration for integration with suitable process controls.
• Wide size availability from 50 mm to 1000 mm.
• Flanged end connection for compatible industrial piping.
• Mild-steel body construction.
• Slide gate mechanism for direct flow isolation.
• ANSI standard specification.
• Designed for industrial applications involving slurry media.

Applications Across Industrial Processing

SVI Make Slide Gate Valves can be considered for industrial systems where slurry or solid-containing media requires controlled isolation. Their pneumatic configuration is particularly suited to installations where operators need actuation from a control point rather than operating the valve directly. Final selection should be based on slurry characteristics, operating pressure and temperature, pipeline dimensions, installation requirements and actuation conditions.

Industrial Valve Supply from Ahmedabad

Shiv Valves Industries, established in 2022, manufactures industrial valve solutions from Ahmedabad, Gujarat, with a focus on meeting application-specific requirements and maintaining defined quality standards. The SVI Make Slide Gate Valve is available with a minimum order quantity of 1 piece.

For project requirements in Ahmedabad and across Gujarat, share the required valve size, slurry characteristics, pipeline connection details and operating conditions with Shiv Valves Industries to identify the appropriate Slide Gate Valve configuration for your installation.
