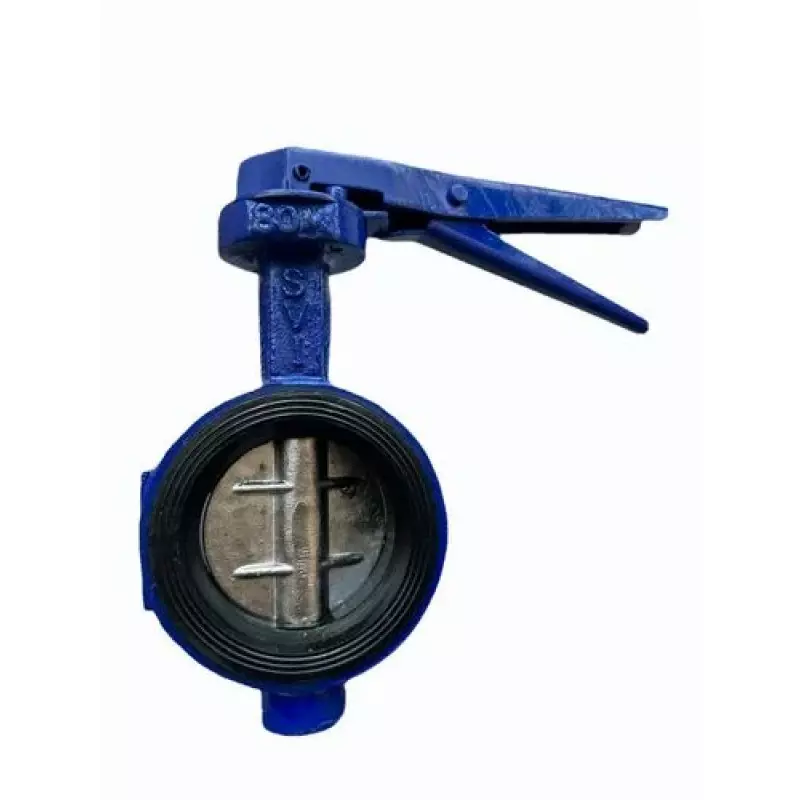

Cast Iron Manual Butterfly Valve

When a pipeline needs straightforward isolation, quick manual control, and a space-conscious installation, a wafer-type butterfly valve offers a practical solution. Our Cast Iron Manual Butterfly Valve is developed for such service requirements, combining a robust CI body with a ductile iron (SGI) disc, EPDM seat, and lever-operated quarter-turn mechanism. With a 50 mm (2 inch) size and PN 10 pressure rating, it is suited to water and general industrial piping applications where dependable manual operation is required.

Compact Construction for Efficient Flow Isolation

The valve uses a wafer-style body designed to fit between pipeline flanges. This arrangement helps reduce installation space while maintaining a practical connection within the piping system. The manual lever provides direct control, allowing the disc to be positioned rapidly between open and closed conditions. Its compact construction makes it convenient for installations where operating accessibility and limited space are important.

Balanced Material Selection for Industrial Service

The cast iron body provides a sturdy structural base for the valve, while the ductile iron disc is selected for its strength and suitability for repeated rotational movement. The EPDM seat supports effective sealing in compatible service conditions and helps maintain reliable isolation when the valve is closed. Together, these components create a practical configuration for medium-pressure piping systems.

Lever-Operated Control Without Complexity

Manual operation is particularly useful where frequent automation is unnecessary and operators require direct mechanical control. The quarter-turn design enables rapid movement from open to closed positions. This can make routine line isolation and flow adjustment convenient during plant operation, maintenance, and servicing activities.

• 50 mm (2 inch) compact valve size
• Cast iron body construction
• Ductile iron (SGI) disc
• EPDM resilient seat
• Wafer-type body configuration
• Manual lever operation
• PN 10 pressure rating
• Quarter-turn operating principle

Applications Across Practical Piping Systems

This Cast Iron Manual Butterfly Valve can be considered for suitable water lines, utility pipelines, HVAC services, and general industrial installations where the specified PN 10 rating and material combination meet the operating requirements. Its wafer construction is useful for compact piping layouts, while manual lever control keeps operation simple and accessible.

SVI Manufacturing in Ahmedabad, Gujarat

Shiv Valves Industries, established in 2022, manufactures industrial valve products with attention to defined material, operating, and dimensional requirements. From Ahmedabad, Gujarat, the company caters to customers looking for Cast Iron Manual Butterfly Valves in Ahmedabad and surrounding industrial markets. This product is supplied as a new valve with a minimum order quantity of one piece.

For current availability, technical specifications, quantity requirements, and commercial details of the 50 mm PN 10 Cast Iron Manual Butterfly Valve, contact Shiv Valves Industries for a product enquiry.
